- Maintain-In-Place™ hinged housing design for elastomer replacement without disturbing piping
- Two-piece swan neck
- Non-close tolerance = Low wear = Long Operating Life
- Runs dry without damage
- Seal-less design, no packing gland or mechanical seals, no seal water required
- No internal check valves, no fouling problems
- Self-priming with high suction lifts
- Passes up to 2″ solids and line size semi-solids
- No routine maintenance required
- Compact footprint
- Custom configurations available
- Two-year warranty

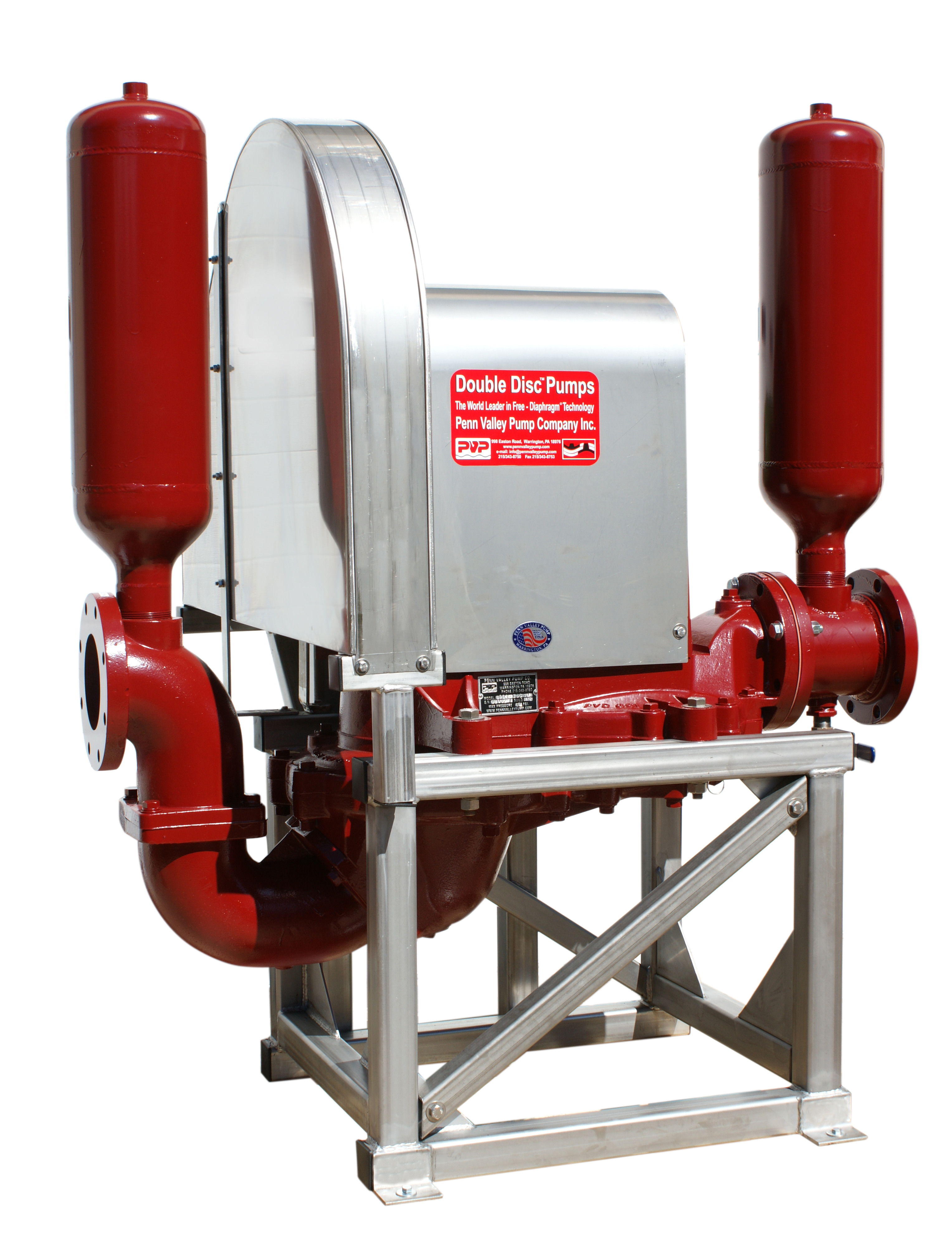

The 6” Model 6DDSX107 Double Disc Pump transports sludge and slurry easily. This is our most common pump size and is a solid workhorse for just about any sludge or slurry application you run across. This pump is routinely used for higher flow primary sludge applications as well as scum, WAS transfer, digested sludge transfer, thickened sludge transfer, truck loading and dewatering feed applications to include: belt press, centrifuge, rotary press, screw press, RDT and GBT feed. This cast iron pump can run dry without damage and has no fouling problems. It has a flow range of up to 550 GPM and can handle up to 2” solids as well as line size semi-solids. This pump operates at speeds up to 400 RPM.
Typical Flow Range | Up to 550 GPM |
Displacement | 1.07 gal/rev @ 60ft TDH @ 300 RPM |
Operating Speed | Up to 400 RPM |
Discharge Pressure | Up to 60 psi operating |
Suction Pressure | Up to 25” Hg (28ft) |
Fittings | 6” 150# Flanged |
Material | Optional | |
Housings | Cast iron | Lined with Porcelain Glass, Neoprene, PVC, Tungsten Carbide, others |
Elastomers | Neoprene | Buna-N, EPDM, HNBR, Viton, others |
Connecting Rods | High-tensile Aluminum |
|
Drive Shaft | High-tensile 400 Series SS |
|
Eccentric Cams | High tensile bronze alloy |
|
Bearing Pedestals | Aluminum |
|
Frame and Covers | SS304 | SS316, Galvanized Steel |
Type | Optional | |
Static | Electric belt and pulley | Gerar reduced direct drive, Air and Hydraulic motor |
Portable | Electric, Gas and Diesel Engine |
|
