EASY MAINTENANCE
Simplified access to joint and rotor thanks to roller-mounted sliding compression casing
EASY TO CLEAN
Fast and powerful cleaning of all parts in the hopper via flange connections mounted directly on the intake hopper
ADAPTABLE
Length of rectangular intake hopper adjustable to upstream components
OPTIMUM PRODUCT CONVEYANCE

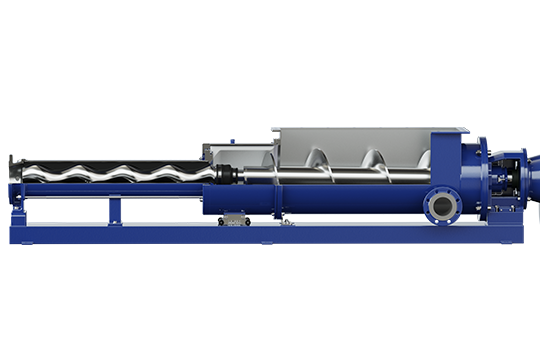

Optimal conveyance of the product to the downstream rotating unit via a screw conveyor installed in the hopper with a large diameter and long pitch
VARIABLE
Available in block design with directly flanged-on drive system, or as a variant with free bare shaft and plug connection
FROM HIGHLY VISCOUS TO SEMI-SOLID

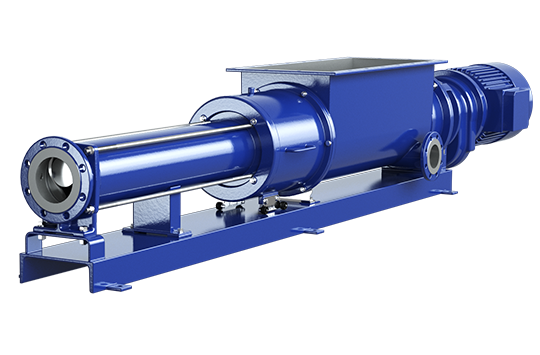

BTVE hopper pumps from SEEPEX provide the ability to transport dewatered sludge with a dry matter content of up to 30%. A large, rectangular intake hopper with screw conveyor allows them to easily be fed with highly viscous and semi-solid products with no tendency towards bridging. A roller-mounted sliding compression casing further simplifies dismantling, thus allowing the cleaning and maintenance of the rotating unit.
Conveying Capacity
0.5-60 m³/h
2.2–264 US gpm
Pressure
≤ 36 bar
≤ 525 psi
Funnel pump: BTVE - Massive screw with adjustable compression housing
Funnel pump: TVE 300-18T including extensions - Project pump.
Maintenance: Assembly of High Pressure Joints
Maintenance Technology: Rotor Joint Access (RJA) and Drive Joint Access (DJA)
