EFFECTIVE
Particularly fine maceration of large pieces by two integrated blade systems – making even the coarsest chunks flowable
OXIDATION-FREE
No oxidation when installed in a closed system – the food therefore retains its quality and odors are minimized
OPTIMUM PRODUCT CONVEYANCE
Conveyance of the optimal flow rate to the downstream rotating unit by compressing the medium in the compression zone
ADAPTABLE
Length of rectangular intake hopper adjustable to upstream components
VARIABLE
Available in block design with directly flanged-on drive system, or as a variant with free bare shaft and plug connection
FINE MACERATION AND CONSISTENT PRODUCT FLOW FOR SOLIDS PROCESSING

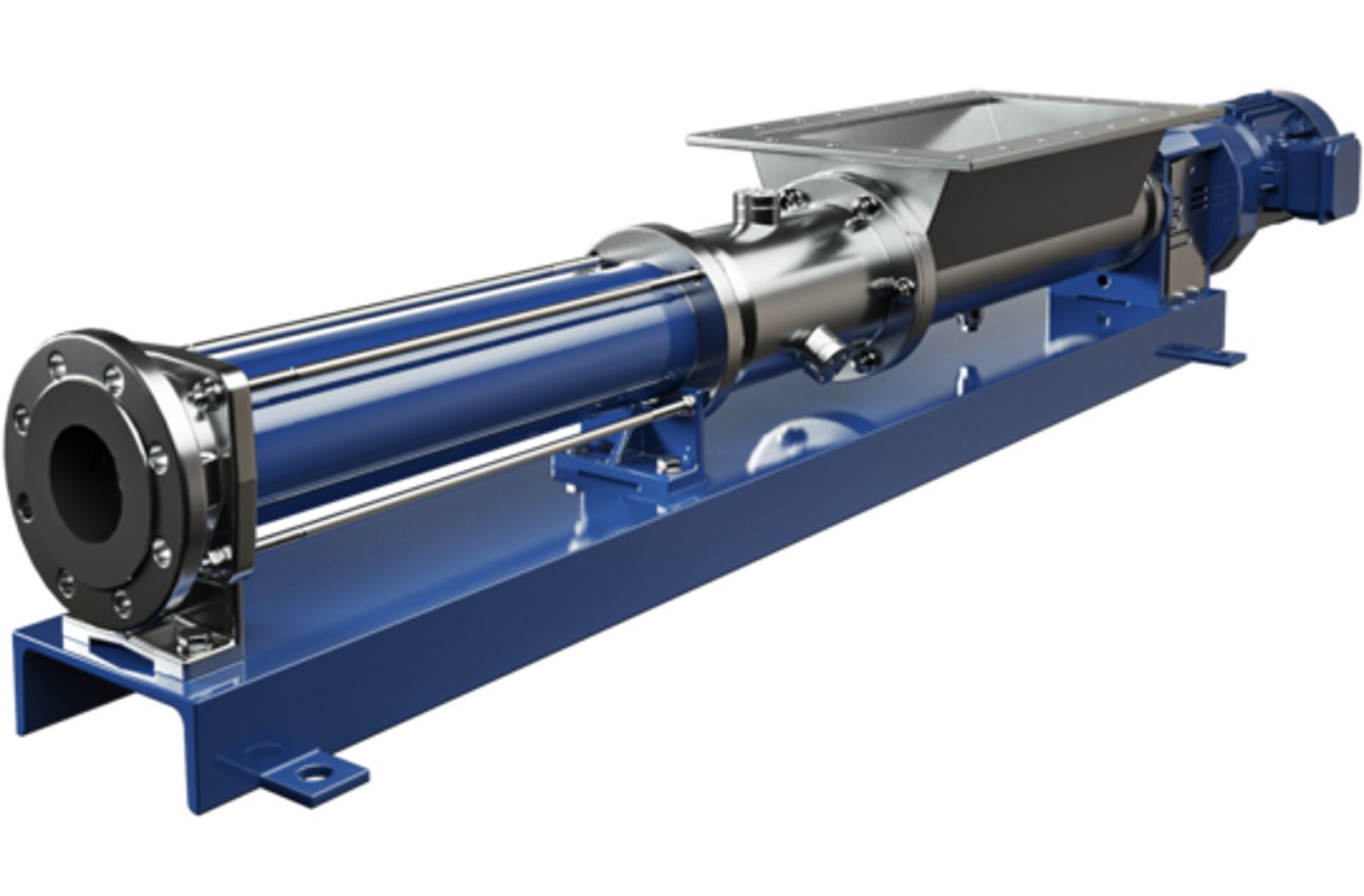

Externally extended compression casing fitted with internal cutting elements: the BTM hopper pump from SEEPEX can be used to prepare e.g. fruit and vegetables for smooth onward transportation. The integrated cutting unit and additional blades in the screw conveyor shred a wide range of solids, thus making them flowable.
Conveying Capacity
0.25–60 m³/h
1.1–264 US gpm
Pressure
≤ 24 bar
≤ 350 psi
