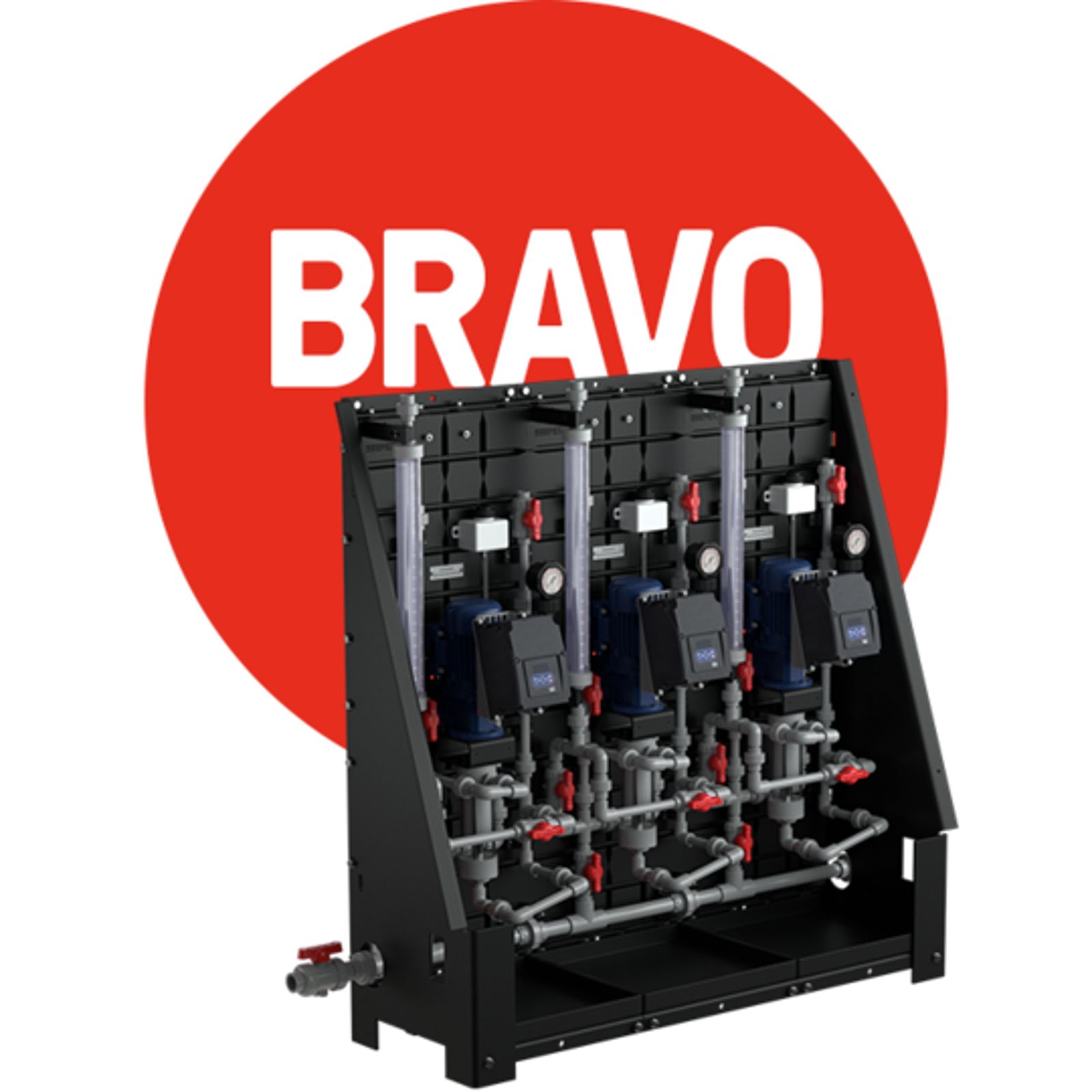

BRAVO - CHEMICAL METERING SYSTEMS

IMPROVED PROCESS CONTROL IN A PLUG AND PLAY UNIT

SEEPEX BRAVO Chemical Metering Systems improve control and reliability in dosing process applications. These pre-engineered, chemical-feed skid systems are used in a variety of industries for disinfection, pH control, flocculation, corrosion inhibitors, oxygen scavengers, and containment elimination. BRAVO Chemical Metering Systems are a modular and scalable solution that adapt to any layout with wall or floor mounting in simplex, duplex, or triplex pump configurations.

Conveying Capacity
0.1–250 US gph
Pressure
≤ 12 bar
≤ 175 psi
Contact Us
Request a Quote Request Service, Parts or Support
Share

Features and Benefits

NSF/ANSI 61-certified SEEPEX progressive cavity Intelligent Metering Pumps

Incorporates a gear reducer and a programmable vector drive in a compact design for precise metering.

SEEPEX Touch controller

Pre-configured with a variety of control algorithms commonly associated with typical pump system operations, and can also be custom-programmed for specialized applications

Low shear with precision metering

For accurate, repeatable flow

Laminar flow

Minimal pulsation and no vapor lock – eliminate pulsation dampeners

Performance efficiency

Low slip (internal back flow) provides performance efficiency and less wear on components

Economical

By-product minimization with reduced chemical consumption and total cost of ownership for flow control systems is reduced

Easy maintenance

Simple and predictive maintenance due to minimal components

Technologies, accessories and options

  • Technology
  • Accessories
  • Options
Range N BN

  • True-Union valves

    Provides easier serviceability.

    True-Union valves

  • Calibration column

    Quickly calibrates flow rates.

    Calibration column

  • Intelligent metering pumps

    With an integrated process controller for superior metering capabilities. Optionally available with a dry running device to alert operators about the presence or absence of fluid.

    Intelligent metering pumps

  • Wind lines

    For easy suction-side degassing.

    Wind lines

  • Liquid-filled pressure gauge

    2.5” diameter, 160 psi gauge provides 1.5% full scale accuracy with integral isolator.

    Liquid-filled pressure gauge

  • Pressure-relief valves

    Protects pumps and piping from overpressure.

    Pressure-relief valves

  • Pipe unions

    Allow for targeted repairs.

    Pipe unions

  • Overpressure Protection

    The pressure gauge switches off the pump as soon as a pre-set pressure is exceeded or not reached and protects the pump from increased wear and tear or piping damage.

    Overpressure Protection

  • Single-acting mechanical seal

    Universal standard mechanical seal for dosing, food applications and semi-submersible pumps for sealing the plug-in shaft in the suction casing or the hopper.

    Single-acting mechanical seal
