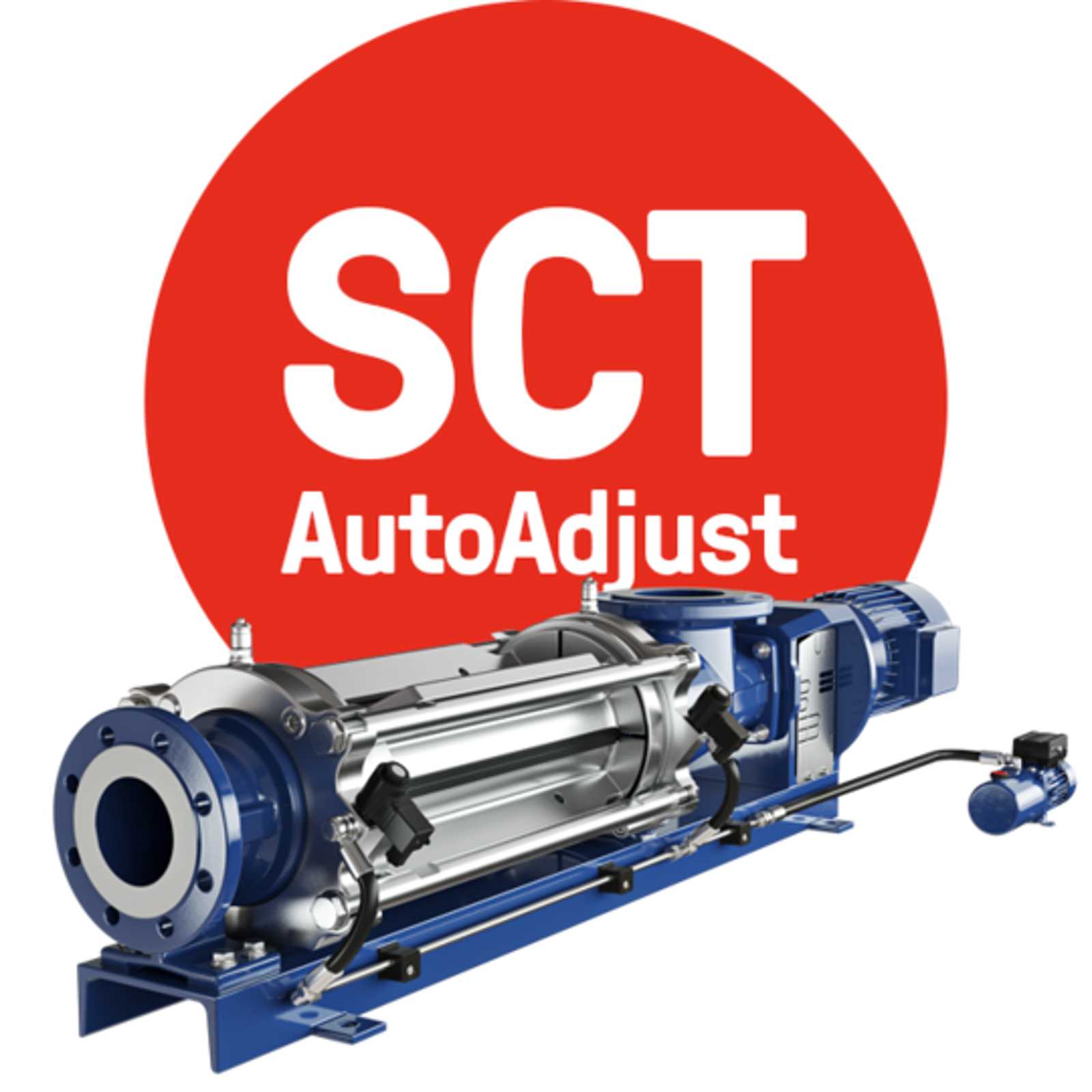

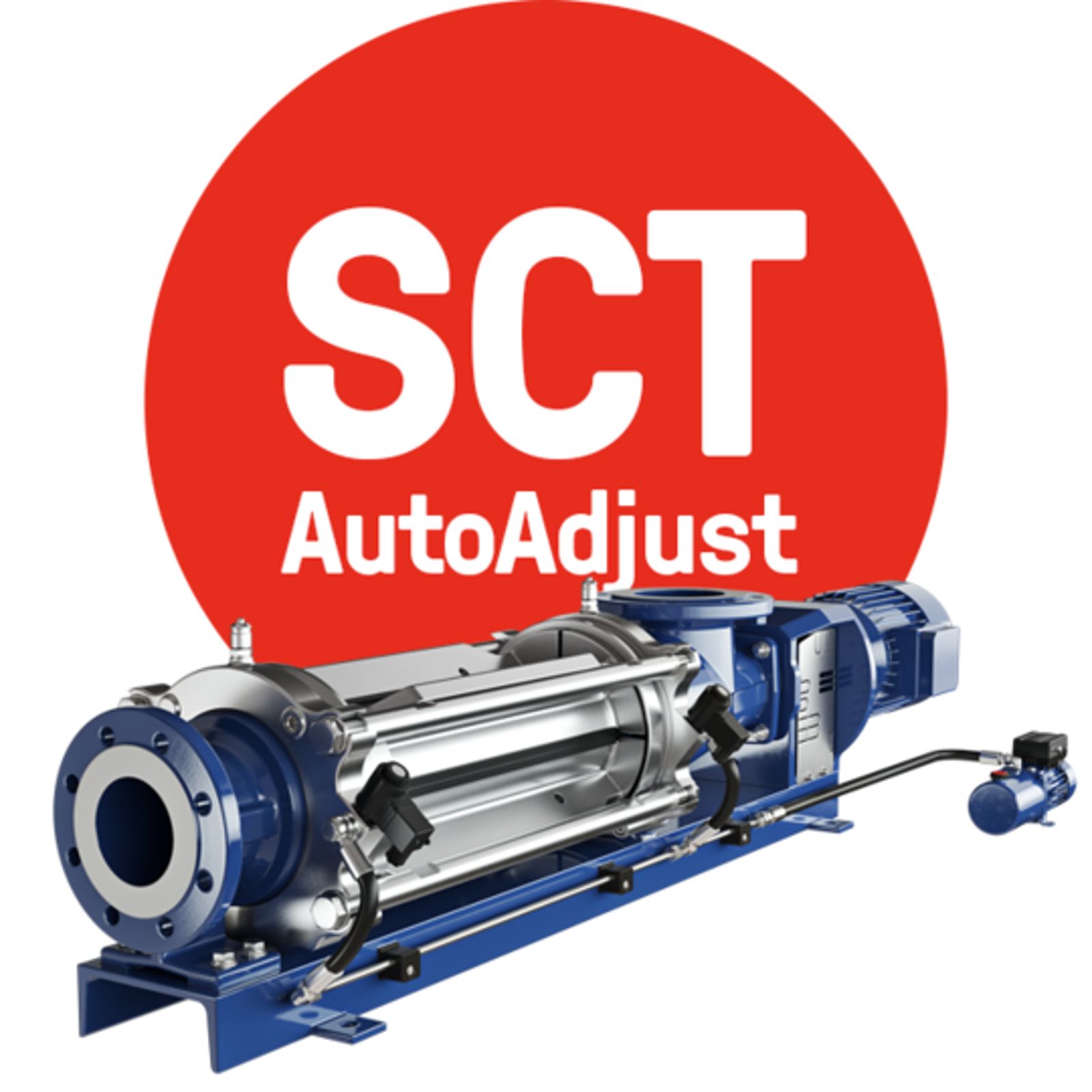

For consistent pumping capacity and high productivity: The hydraulic, high-precision stator clamping of the SCT AutoAdjust is automatically adjustable at the touch of a button – from the control room or at the point of use via the SEEPEX Pump Monitor. This makes the SCT AutoAdjust indispensable for critical applications that require maximum performance and reliability while maintaining absolute operational safety. The SCT AutoAdjust can be used in virtually every industry, application, and for all pumping media.
Pump installations that are difficult to access can be easily reached remotely. No more time-consuming trips around the plant or journeys to remote pump locations
Precise adjustment of the optimum operating status in order to react quickly and easily to changing process conditions and ensure an optimal process result
Reduced maintenance costs thanks to simple, automated operation from the control room and rapid replacement of the rotating unit thanks to Smart Conveying Technology (SCT)
Less wear and extended service life thanks to early adjustment of stator clamping
No unplanned stoppages thanks to an always up-to-date overview of the pump status, the results of adjustments, and the wear reserve in the overlapping systems

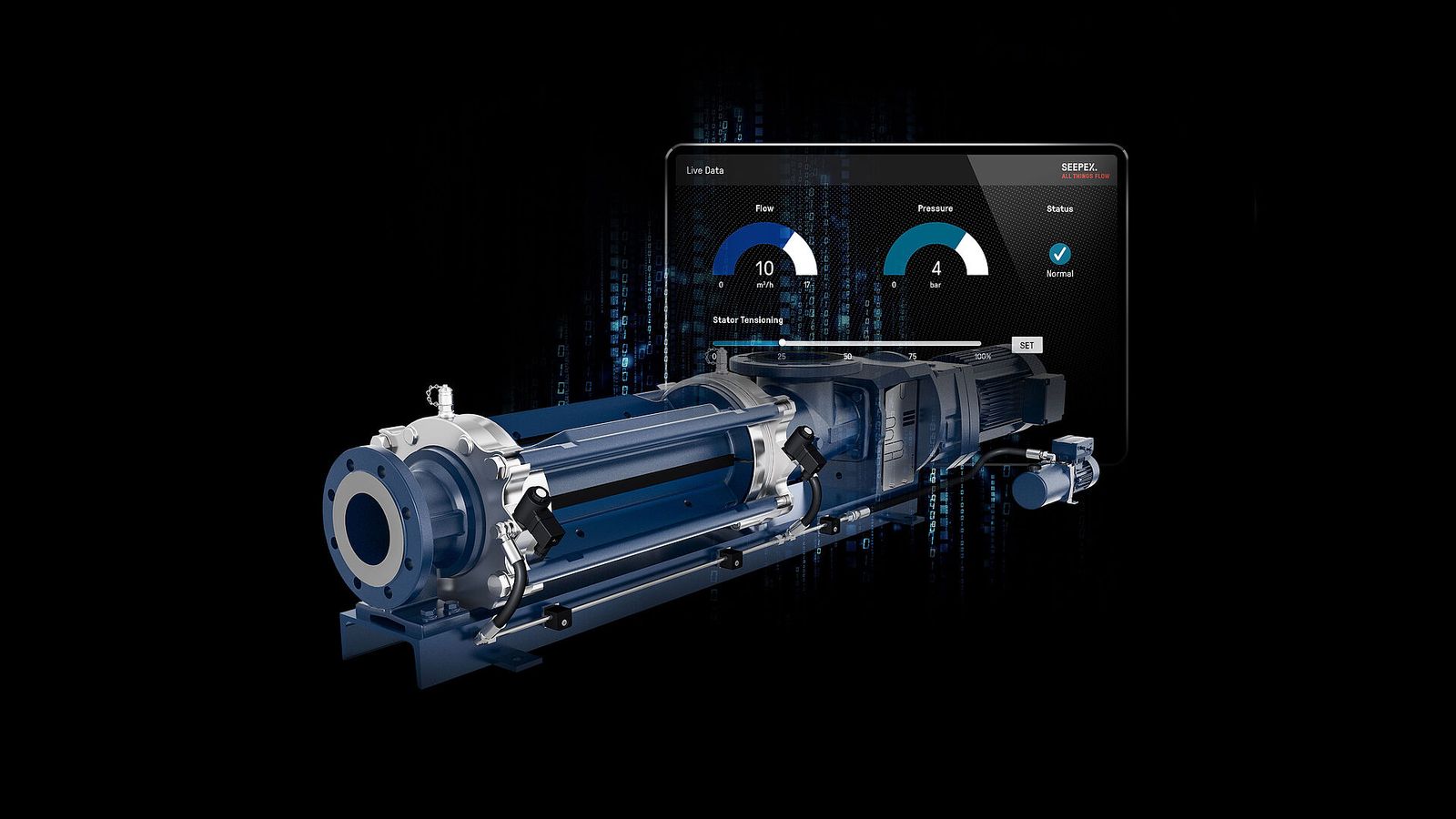

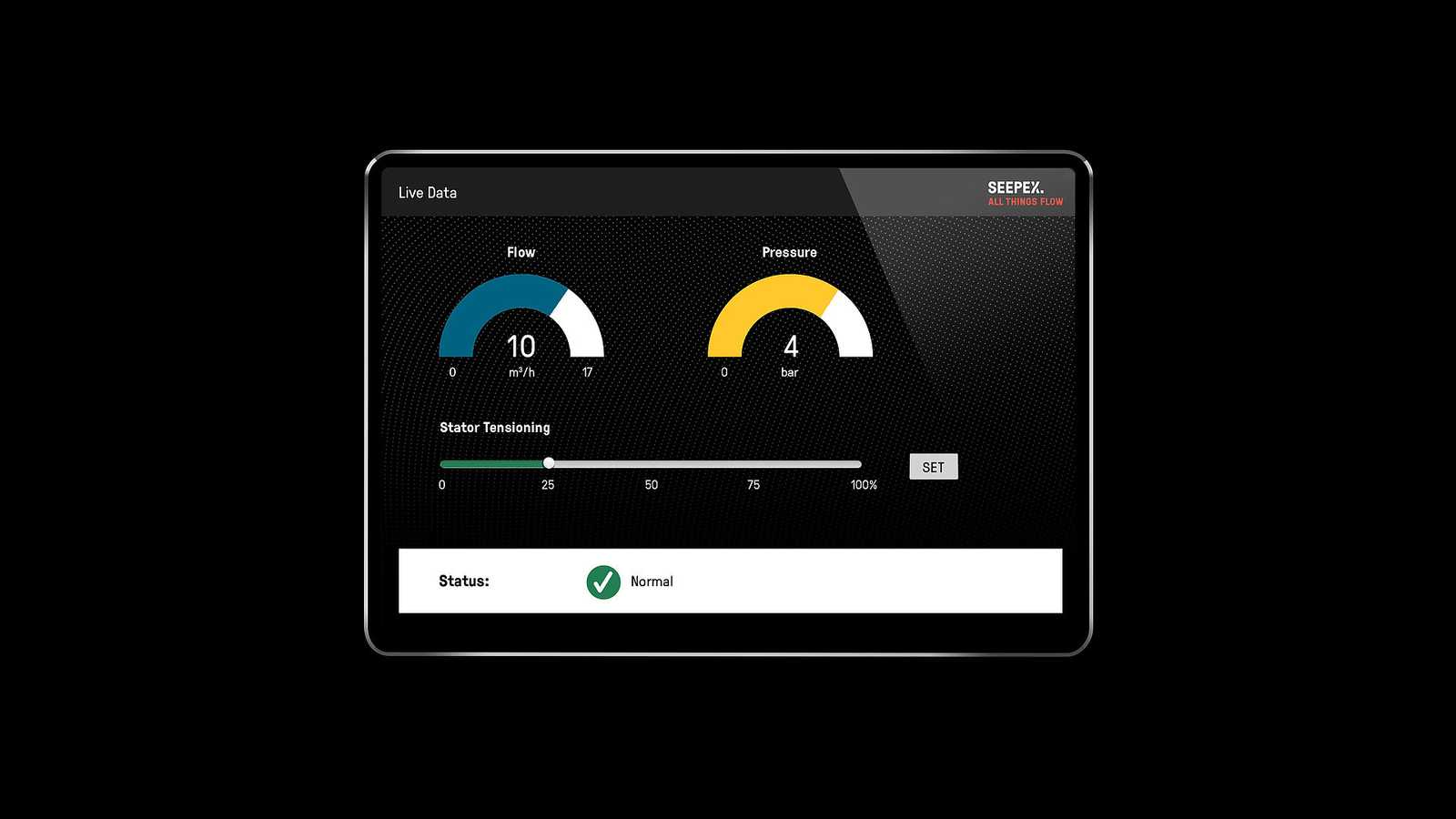

All processes under optimal control at all times thanks to monitoring of the pump status in the control system, at the Pump Monitor, or optionally via SEEPEX Connected Services
Made of stainless steel, polished inside, glass bead blown outside. Allows effective draining. Connection as standard to DIN, Tri Clamp® or any other known fittings
Innovative automatic solution for simple retensioning of the stator via remote control.
Corrosion proof, optional available in stainless steel design.
Two, comparatively light, stator halves.
Tailor-made selection of base plates. The base plates can be easily combined with different drives from all major manufacturers.
For positioning and axial sealing of the stator halves. For applying and readjusting the stator clamping.
With detachable rotor head connection for fast assembly/disassembly, while leaving the universal joint intact.
For power transmission. Improved design, optional special designs available.
The innovative two piece 'split' seal housing allows for easy removal and replacement of both the rotary and stationary mechanical seal components
Geared motors, variable speed drives or frequency controlled motors of all major manufacturers, directly flanged to the pump without additional couplings or guards. Covers made of stainless steel are available.
Controls the hydraulic feed. Allows connection to a control room or to the SEEPEX Pump Monitor.
The pressure gauge switches off the pump as soon as a pre-set pressure is exceeded or not reached and protects the pump from increased wear and tear or piping damage.
TSE monitors the temperature of the rotating stator and shuts down the pump when the limit value is reached to protect the pump from dry running.
This unit protects the shaft sealing by selectively supplying barrier liquid. Also available with flow meter on request.
Stainless steel protective housing protects the universal joint sleeve from mechanical destruction by rough parts made of plastic, metal, wood, etc. Up to 10,000 operating hours guaranteed.
