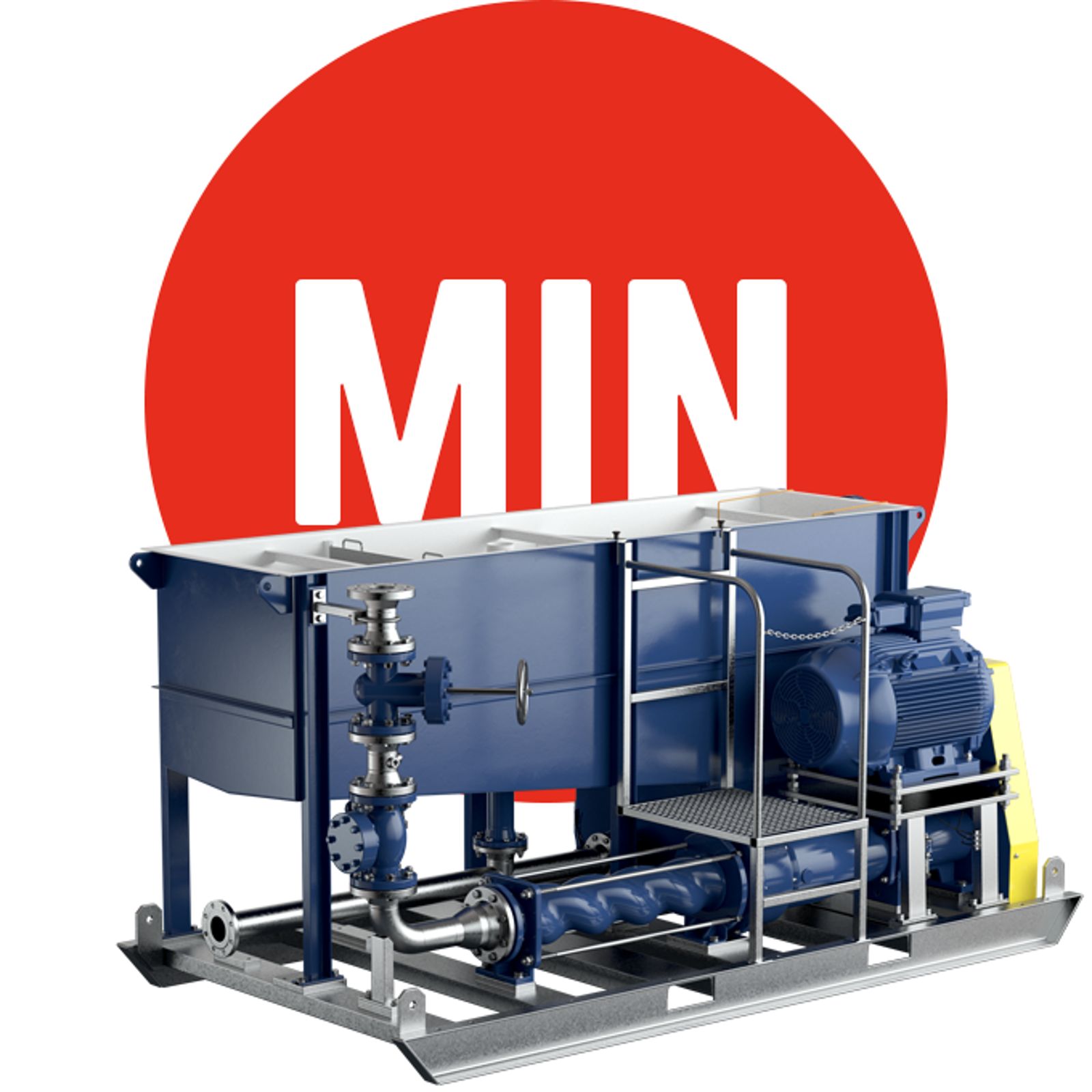

The SEEPEX Mine Dewatering Unit is engineered for efficient spearation of oversized solids and conveying of mine water. The unit consists of a skid baseplate, tank, pipework, and a pump with a drive and controls. The compact design enables easy transport and the option to retrofit into existing dewatering units.
Sliding casing, easy detachable tie rods and movable ladder for easy access to pump and settling tank
Level control enables automatic operation and adjusts speed based on fluid level in hopper
Equal wall stators allow for higher pressures without increasing the size of the pump
Compact Design allows easy transport and placement of complete skid where needed
Suction and discharge pipework can remain in place when changing rotor and/or stator
Customizable design for pump and settling tank according to various flows and pressures
Two outlets for sludge or solids removal.
Has a compact, bi-directional design and lifting lugs for simple transport.
Configured to control solids and handle overflow. Standard capacity of 3,300 liters (727 gal.).
Optimized compression between the rotor and stator using wear-resistant and corrosion-resistant materials. A wide range of alloys, coatings and elastomers are available for each.
With short pitches and a compact design, the conventional geometry produces high pressures.
The stator with uniform wall thickness is used in situations with very high pressures or temperatures.
A lightweight, maneuverable work platform.
A protective coating on the skid and pipework to prevent rust.
According to the local mining specifications.
Enables automatic operation.
The pressure gauge switches off the pump as soon as a pre-set pressure is exceeded or not reached and protects the pump from increased wear and tear or piping damage.
Protects against damage to the stator through dry-running. Optionally available.
Universal seal for hopper and standard pumps for sealing the plug-in shaft and suction casing or feed hopper. Also available with grease or lantern ring to shut off the media flow. Can also be supplied with upstream labyrinth seal and additional flush connection or lubricating device.
Universal standard mechanical seal for dosing, food applications and semi-submersible pumps for sealing the plug-in shaft in the suction casing or the hopper.
